4MP Wireless Security Camera System 5XDigital Zoom Two Way Audio WIFI PTZ Camera 8CH NVR Kit Video Surveillance System Waterproo

Main Features:

● Ultra HD 4MP Resolution ;
●4.0mm design;
● Support DIY Alert Voice and Alarm Bell / Customized new speakers with loud volume (4w high power)
● Support vision 8 times magnification(only support 5x digital zoom, it doesn’t support 5x optical zoom) ；
● Supports full-time loop recording, when the Sd card is full, the old video will be covered view the new recording automatically. Support Motion Alarm Recording, you could just record when it detects movement to save more storage for your SD card and cloud storage ;

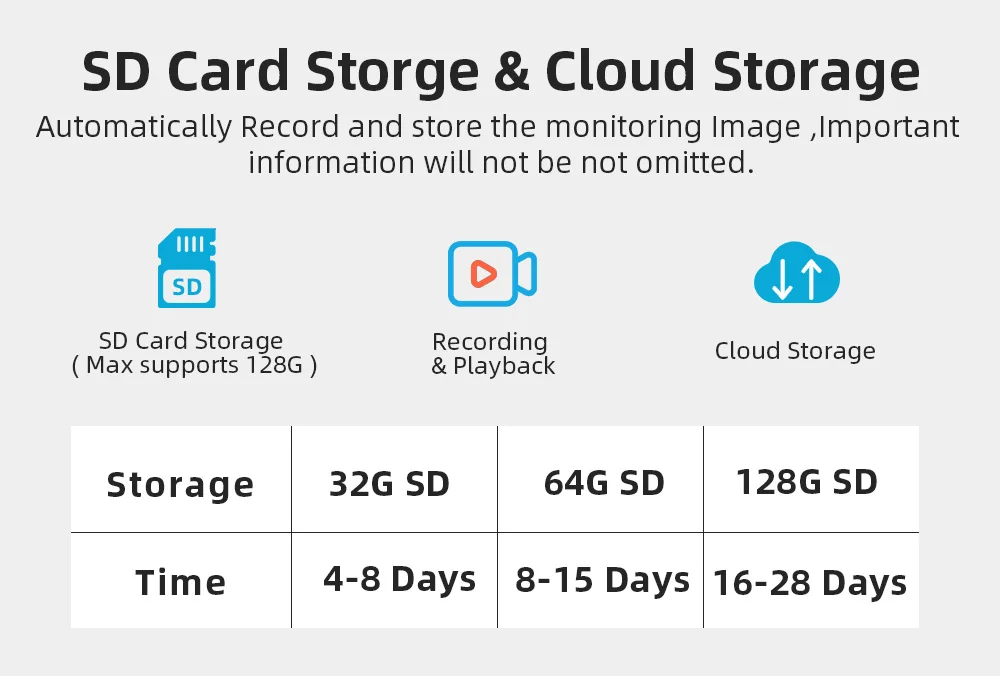

● Support Two Modes Recording: Free 30-day cloud storage, Max 128G SD card Record, data security is more stable ;
● P2P Remote Access/Multi-User: P2P technology let you be able to view the live situation of your house wherever you are, just with the P2P account on the app via your Smartphone or tablet.
● PTZ: rotates 270° Horizontally and 100° Vertically ;
● H.265X new storage design, TF card storage is lower, more stable, and more durable ;
● Xmeye independently developed the RTS Cloud architecture, which is faster and the preview is more stable ;
● Special Technology: Exclusive patented spherical heat treatment, with an average of 30 degrees, let the screen exposure heat dry and disappear.

Immersive 4MP Super HD & Starlight Night Vision

4MP UHD image has more exquisite,better light saturation,lower noise and other advantages,color night vision is up to 10m, allowing you to see what you need. Whether it is someone sneaking in at midnight or a raccoon’s break-in, all will be captured by the camera in close-up detail.

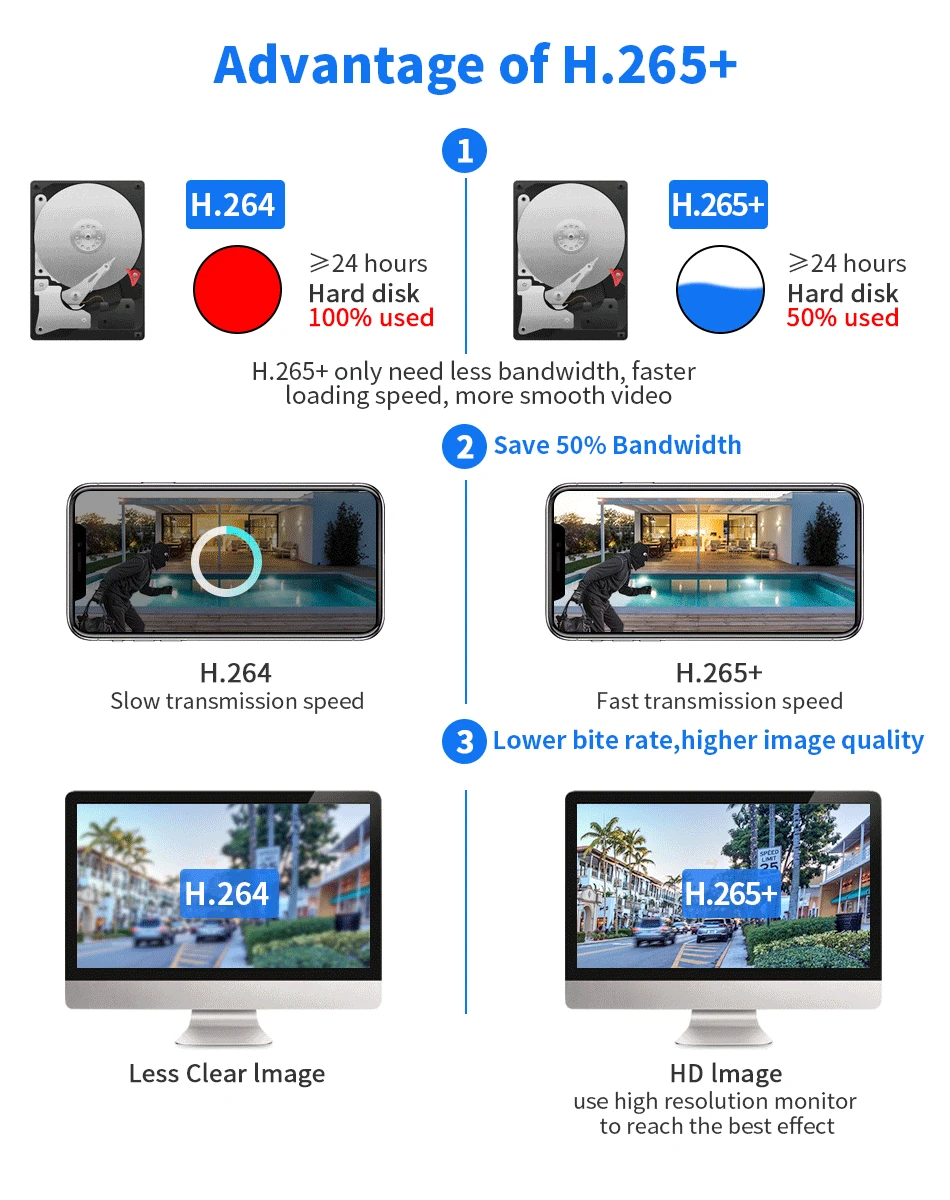

H.265 Image Cording

This CCTV WiFi camera support H.265 image cording, save more storage space

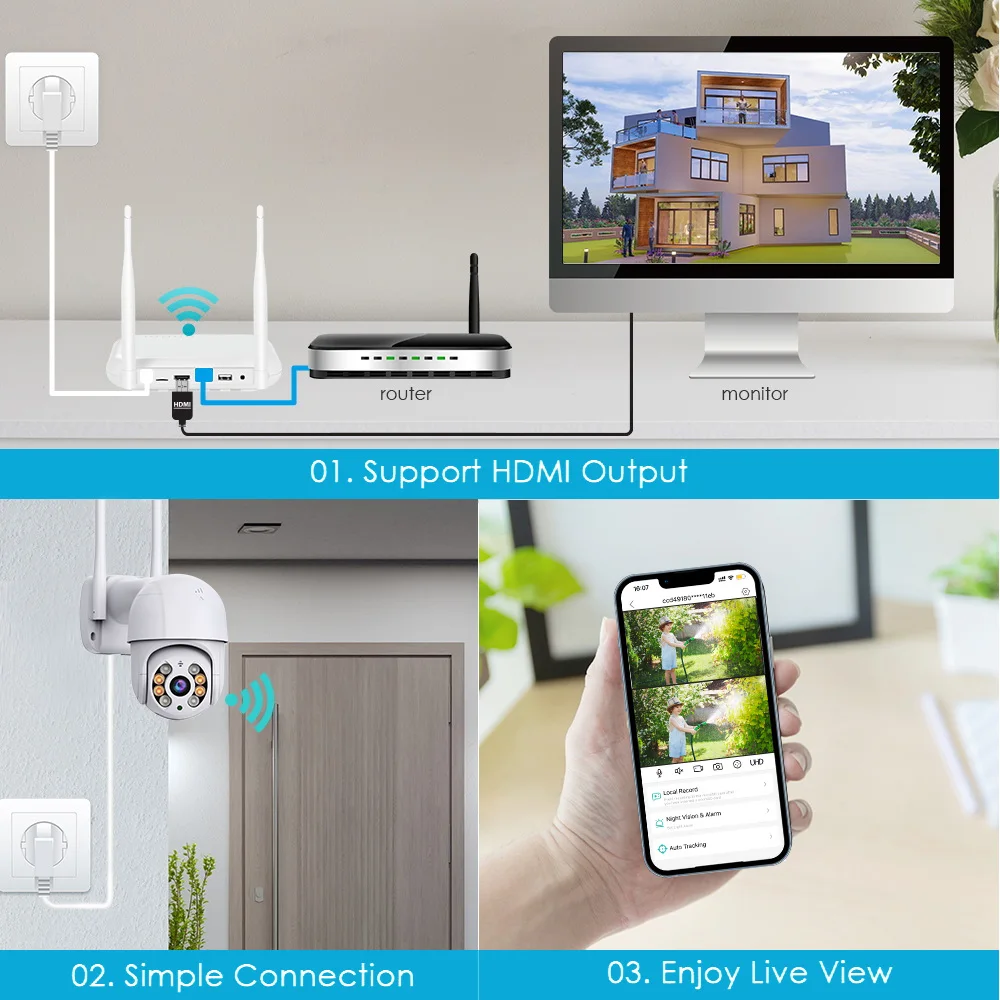

True Plug and Play,Easy Installation

Q: How does the WiFi Camera and WiFi NVR in the Wireless Camera Kit work?
A: Our WiFi Camera has been maatched before leaving the factory. When you supply power to WiFi Camera and Wifi NVR, WiFi NVR will automatically connect to WiFi Camera; Then you can watch the image, Which is really Plug and Play, and the operation is very simple;
Q: How does the WiFi NVR connect to the WiFi Router?

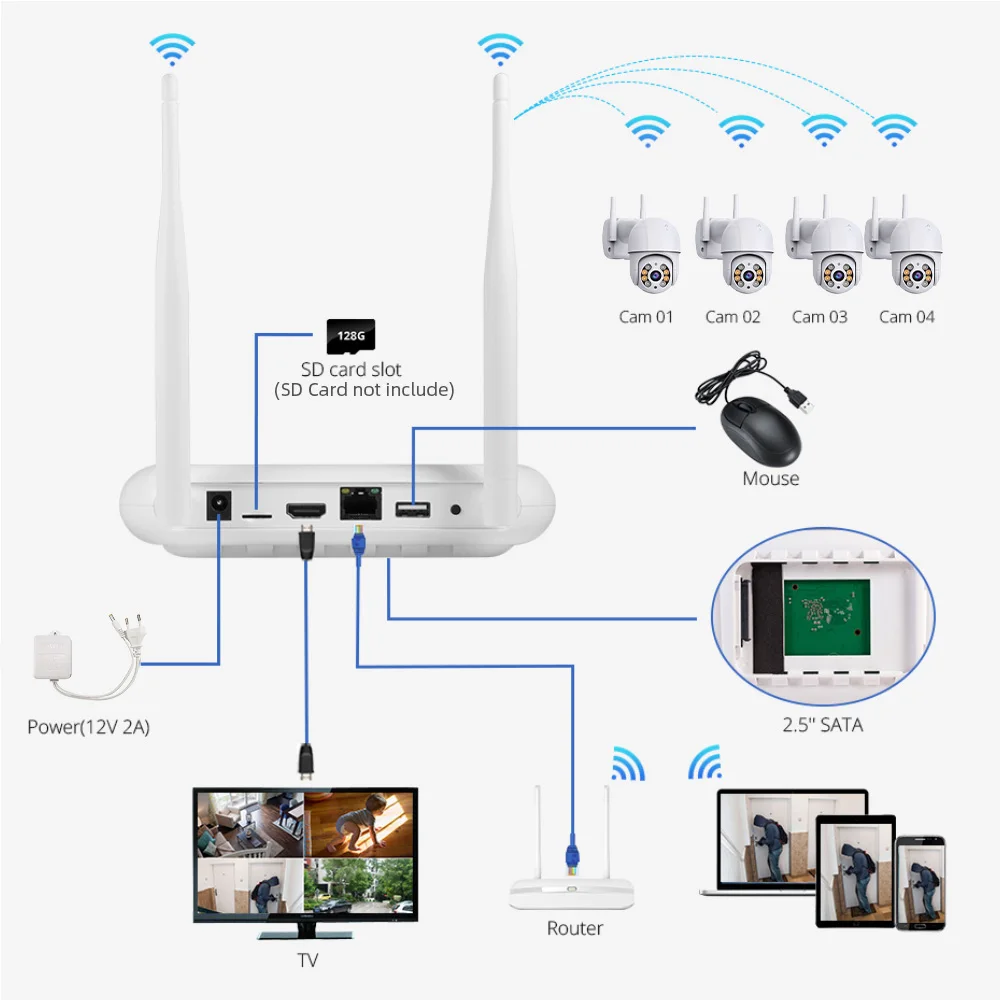

A: Connect Wifi NVR to Wifi Router through Network Cable( Note: Unable to connect Wirelessly)Please refer to the system connection diagram below;

Various connection

You could select the convenient connection as you want . Sometimes you might just have one way to connect the camera , don’t worry , this camera supports wireless and wire connection at the same time.

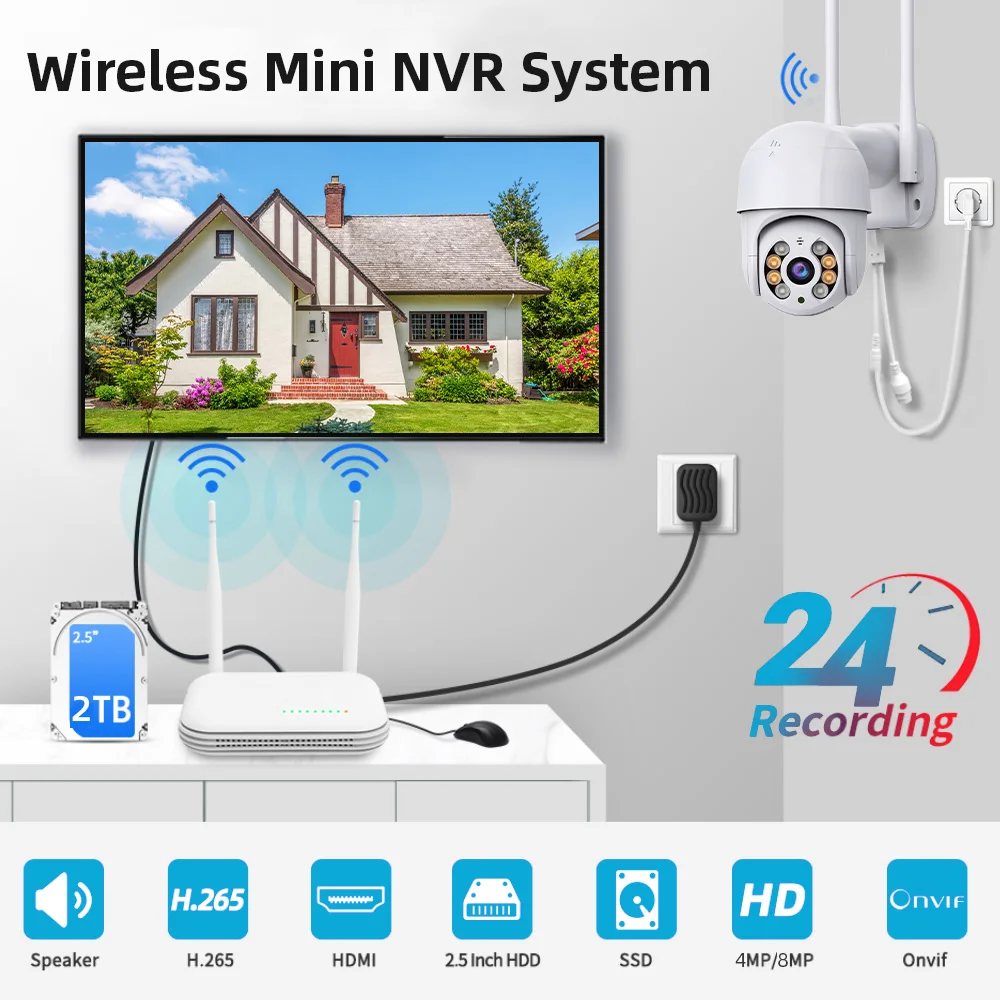

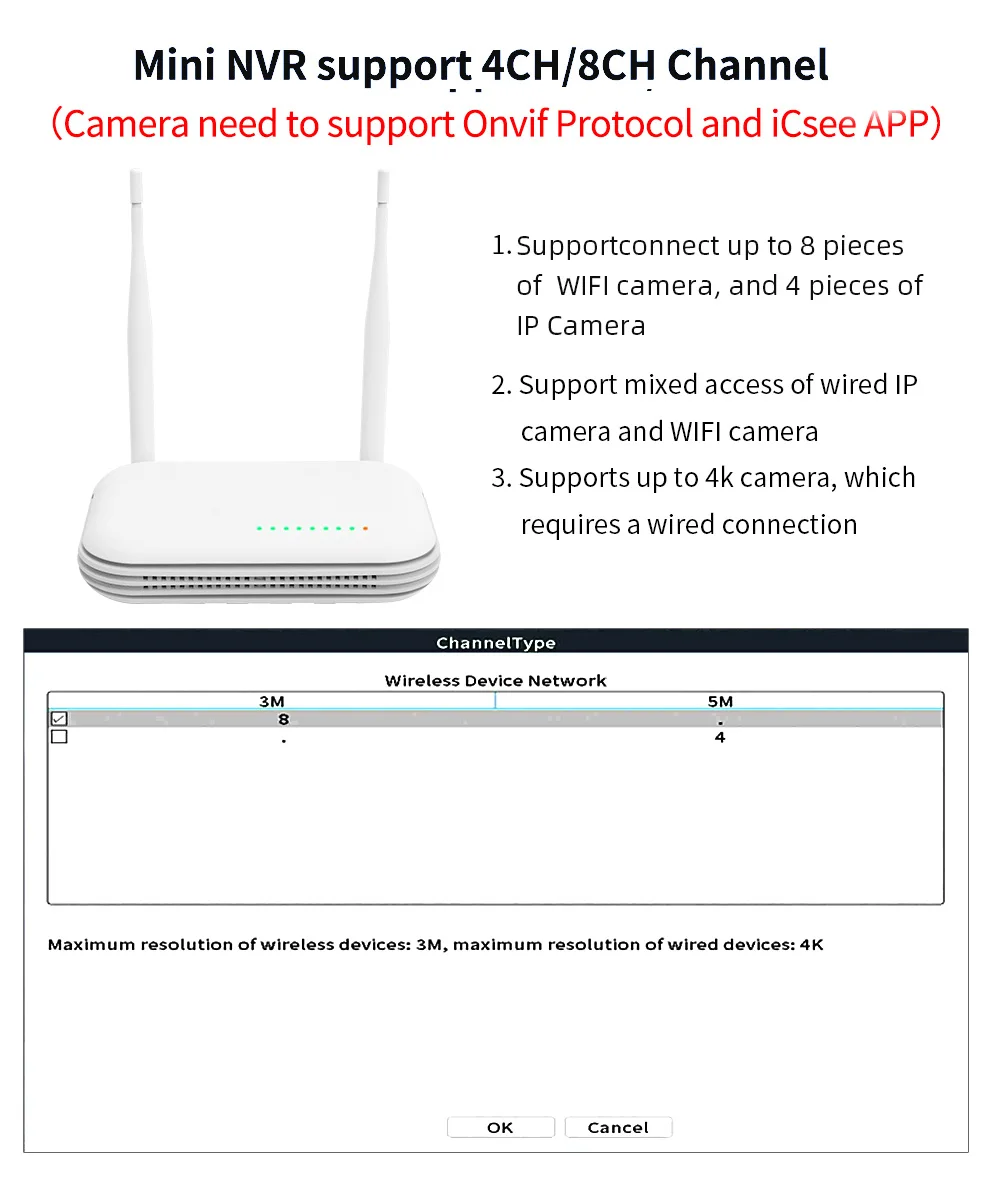

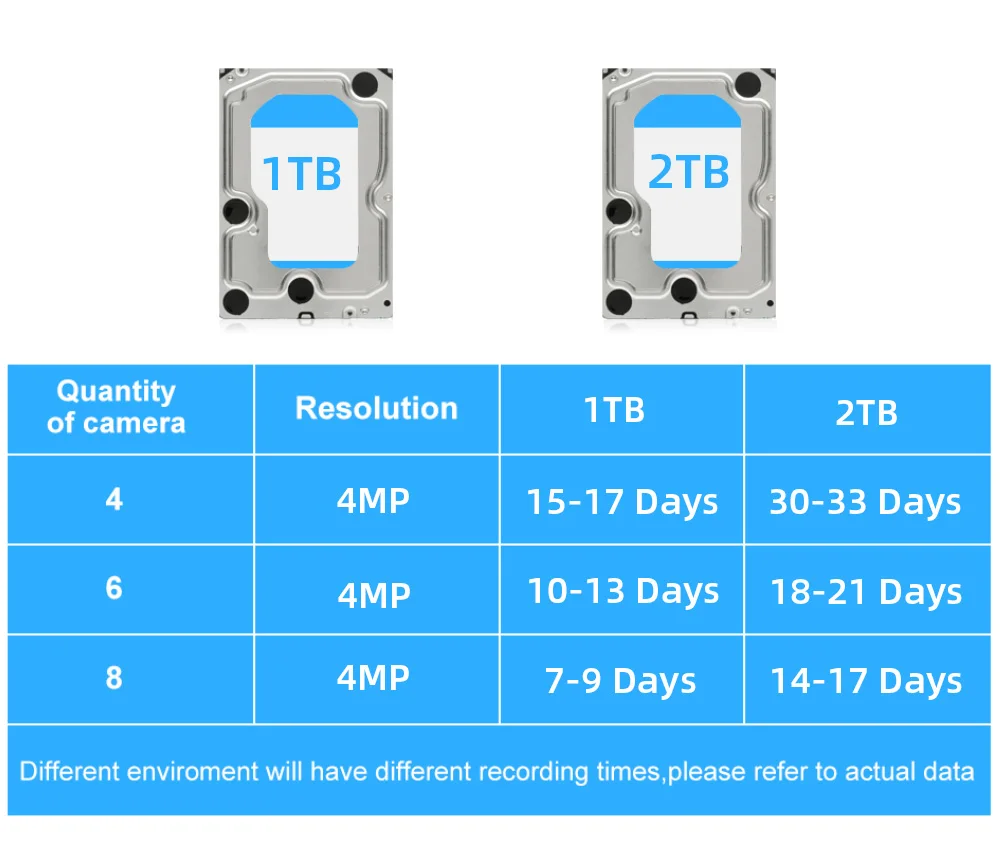

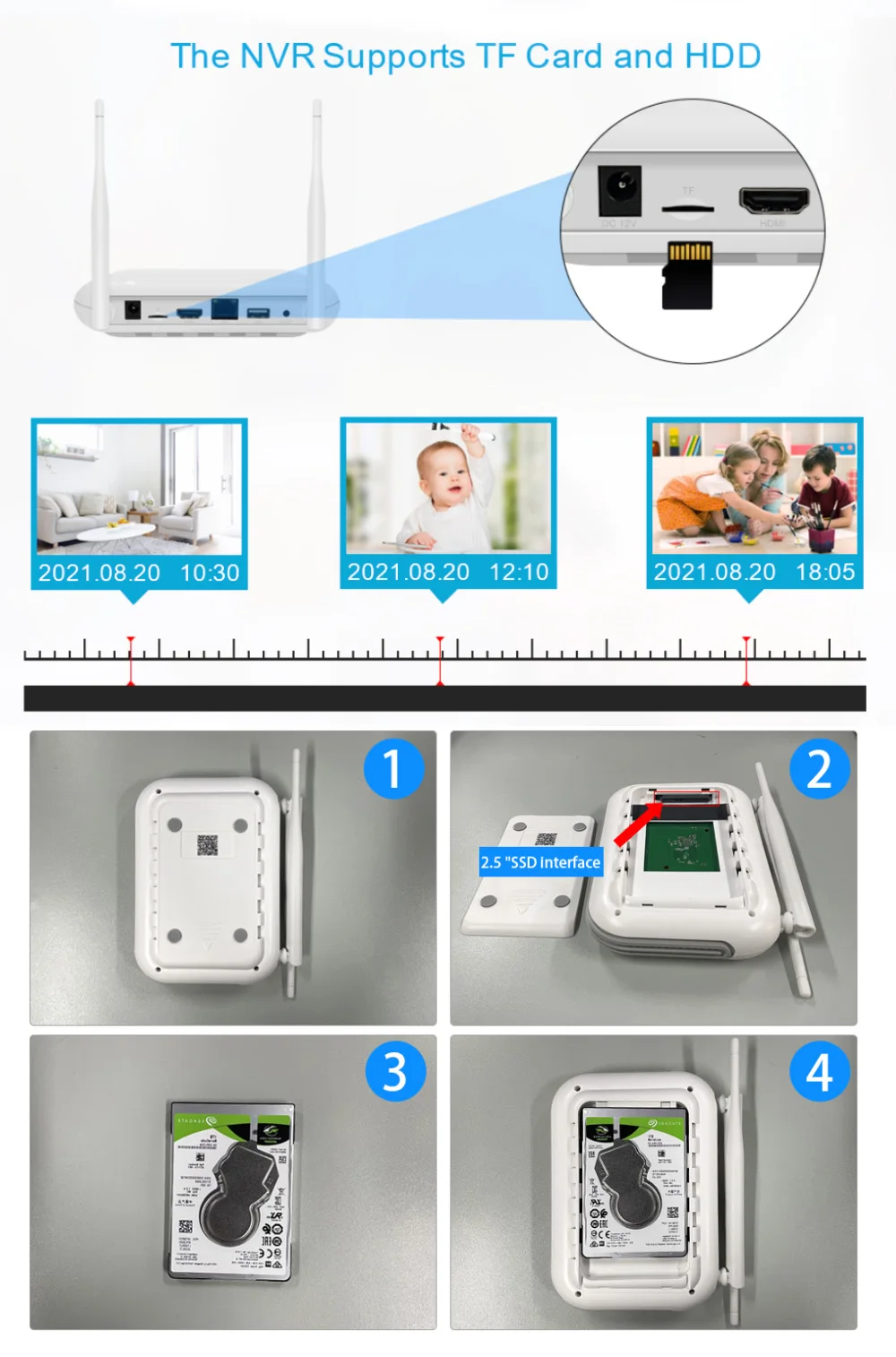

The NVR Support TF Card and HDD

Max support 128G TF Card, and support 2.5 inch SATA HDD and SSD Interface.

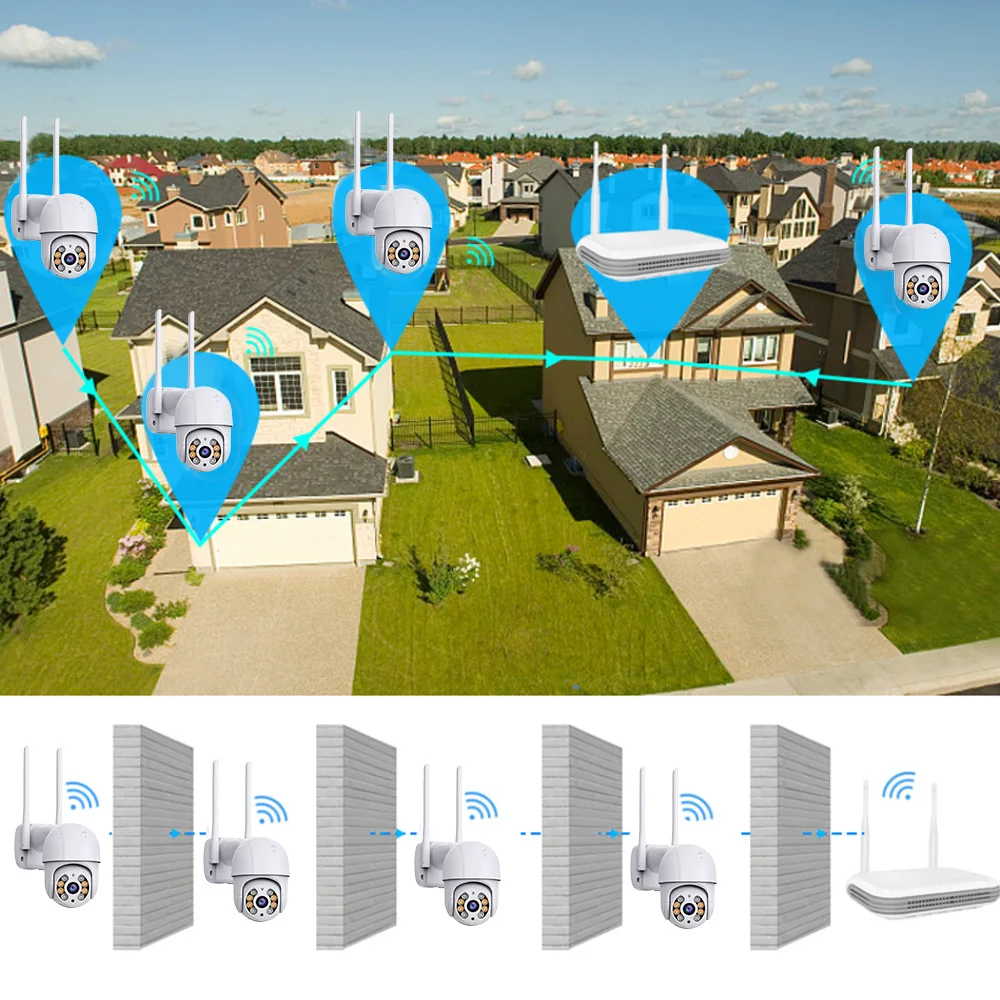

Wireless Cascade Technology

What is cascading technology?
Usually, the camera is a transmitter; The purpose of the cascade technology is that it can turn each WiFi camera into a transmitter and a receiver. It can receive WiFi NVR signals and then transmit the signals to nearby WiFi cameras, the cascading module is built into the body of each WiFi camera.

Smar Wireless System uses the latest wireless cascading technology, supports automatic cascading and manual cascading, and greatly improves the transmission distance and stability.

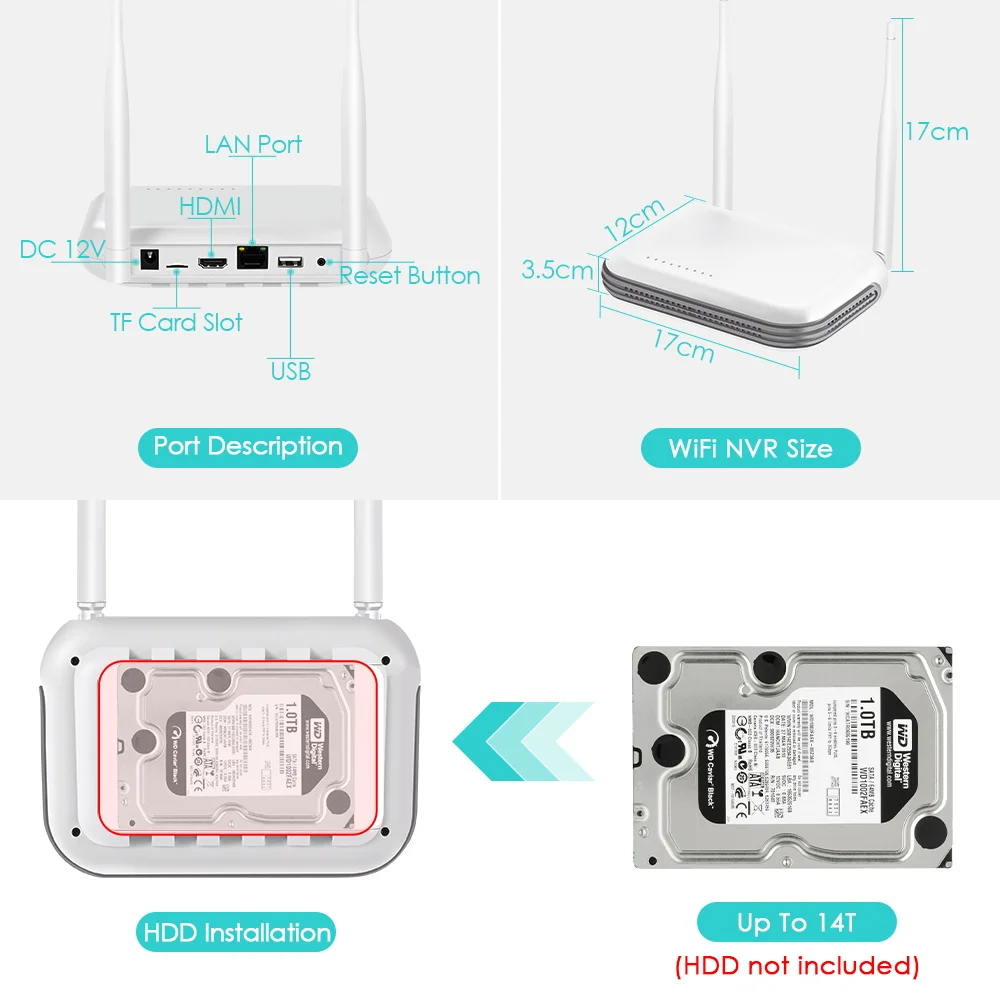

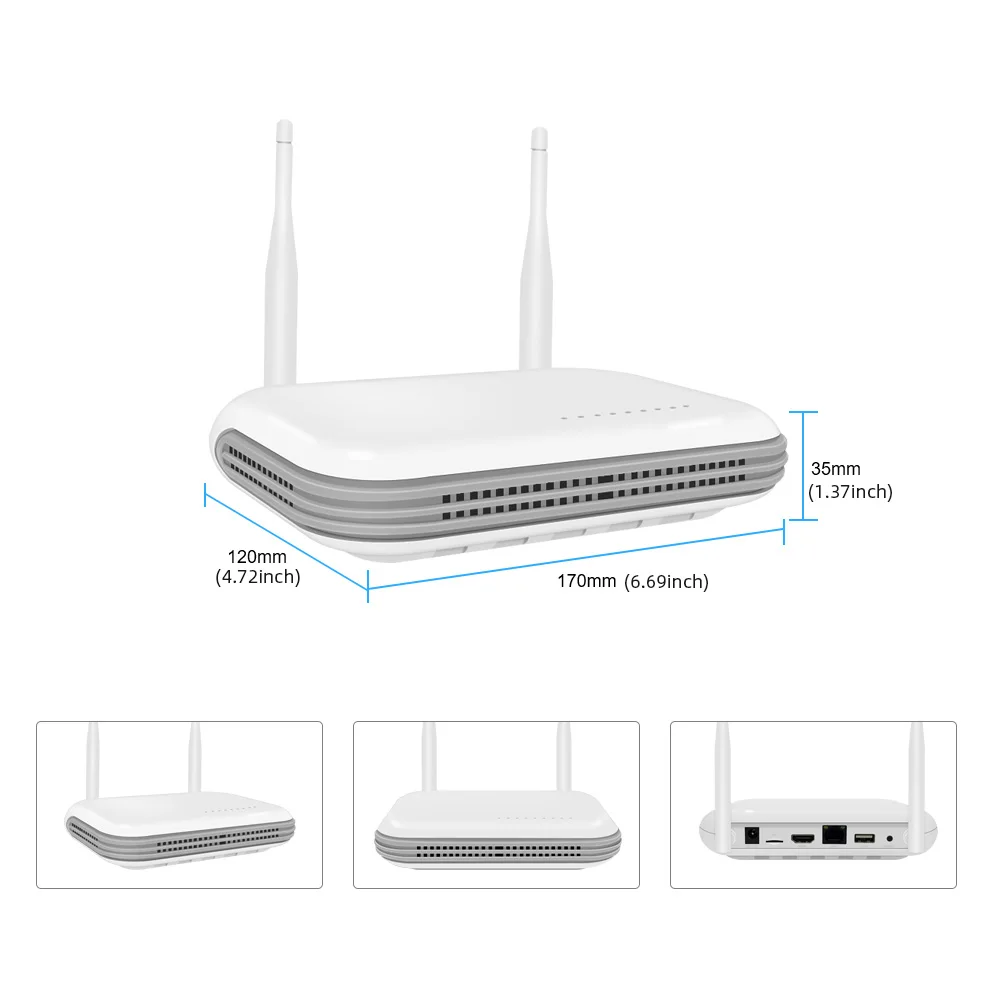

NVR Size and Multi angle display:

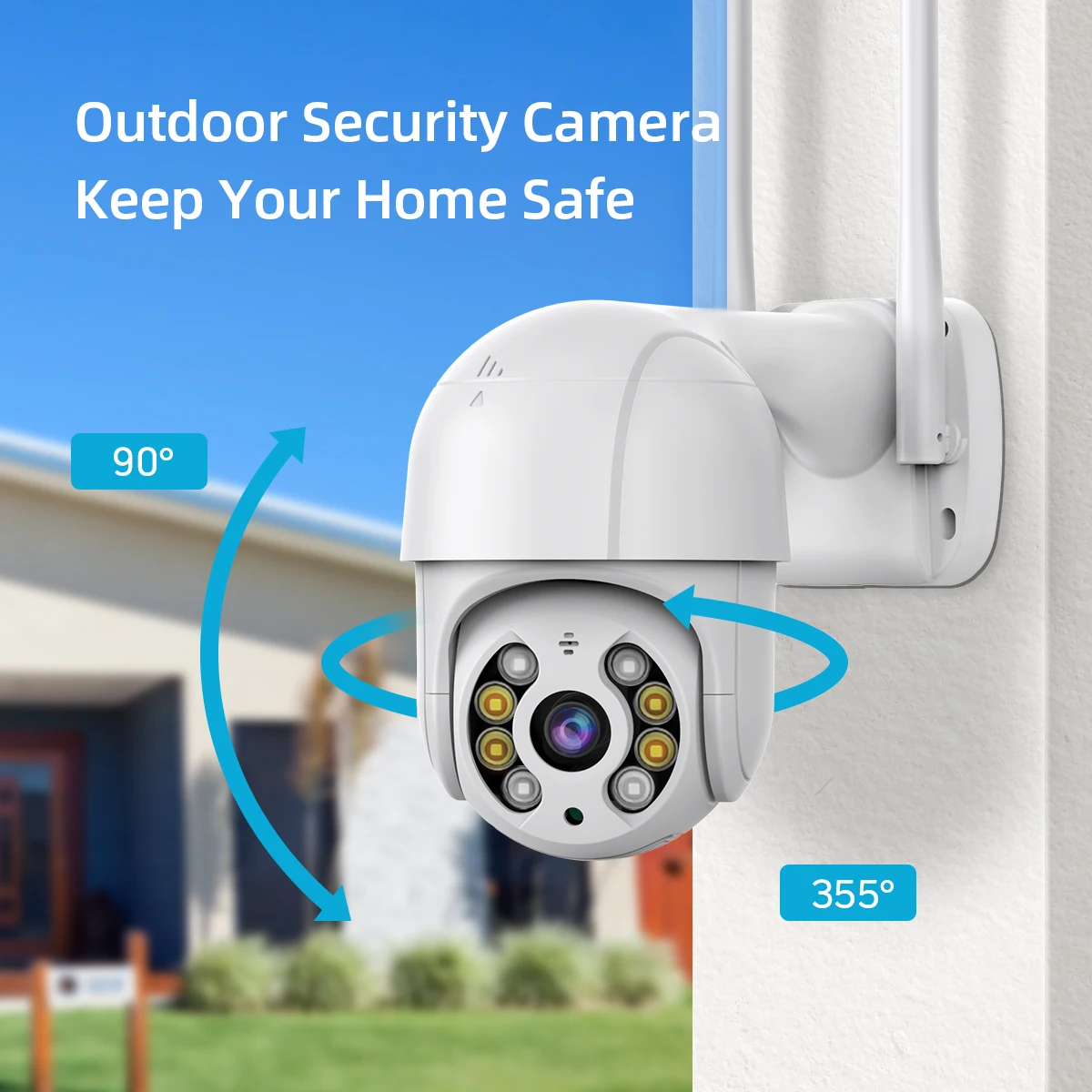

PTZ Remote Control

PTZ: rotates 270° Horizontally and 90° Vertically.

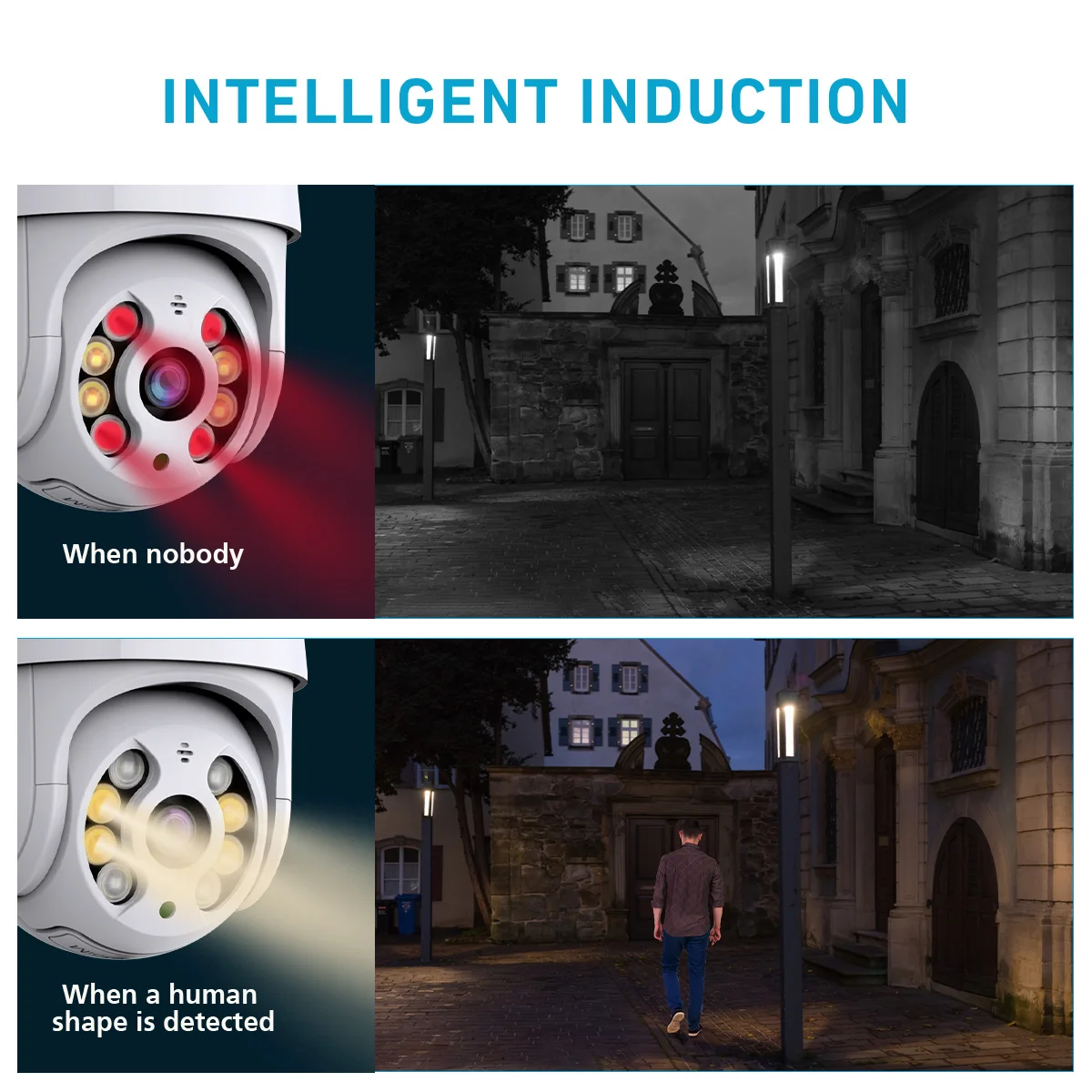

Smart IR-Cut Night Vision

Features
A Non-Invasive Infrared Sensor To Ensure Clear And High-Definition Video Day And Night.

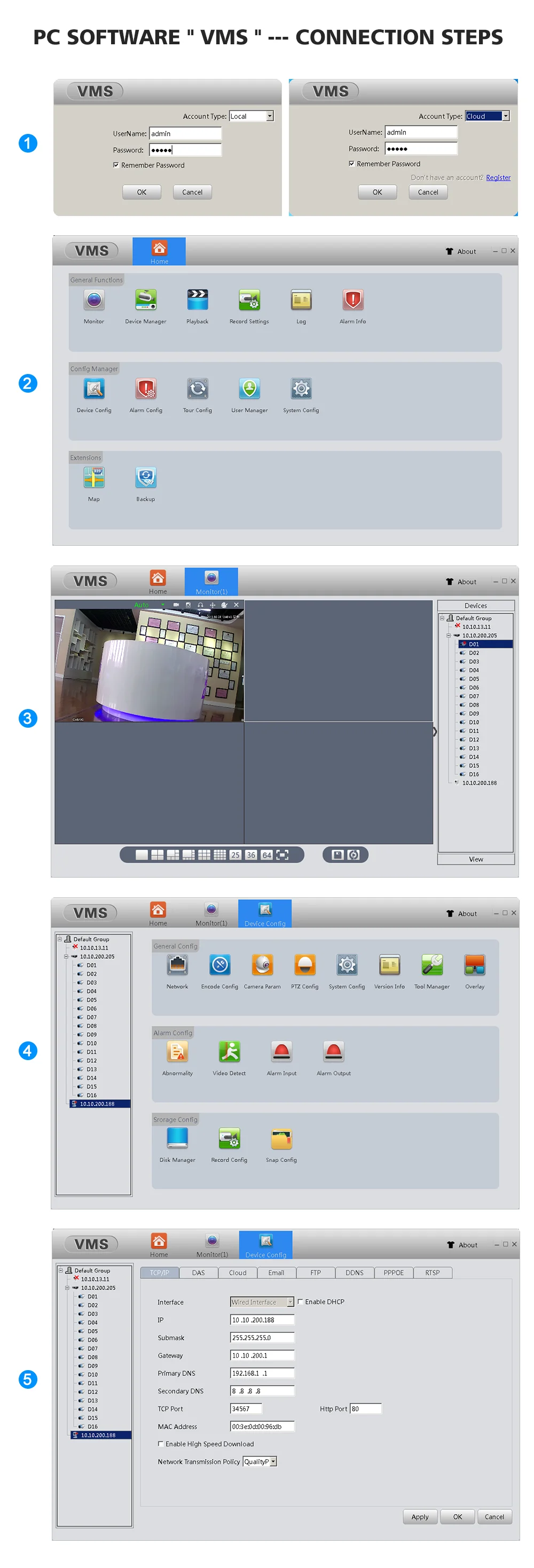

ICsee-Multiple Platform (iOS, Android, Windows) Supported

*Support mobile phones (iOS, Android), support tablets (iPad, Android), support computer (Windows), multi system compatibility. This video surveillance camera is the most convenient way to watch 1080p live streaming from anywhere, anytime.

How to check the NVR connect with network successfully?

Note：The NVR can’t be connected to WiFi wirelessly at present. it can be only fonnected by network cable.

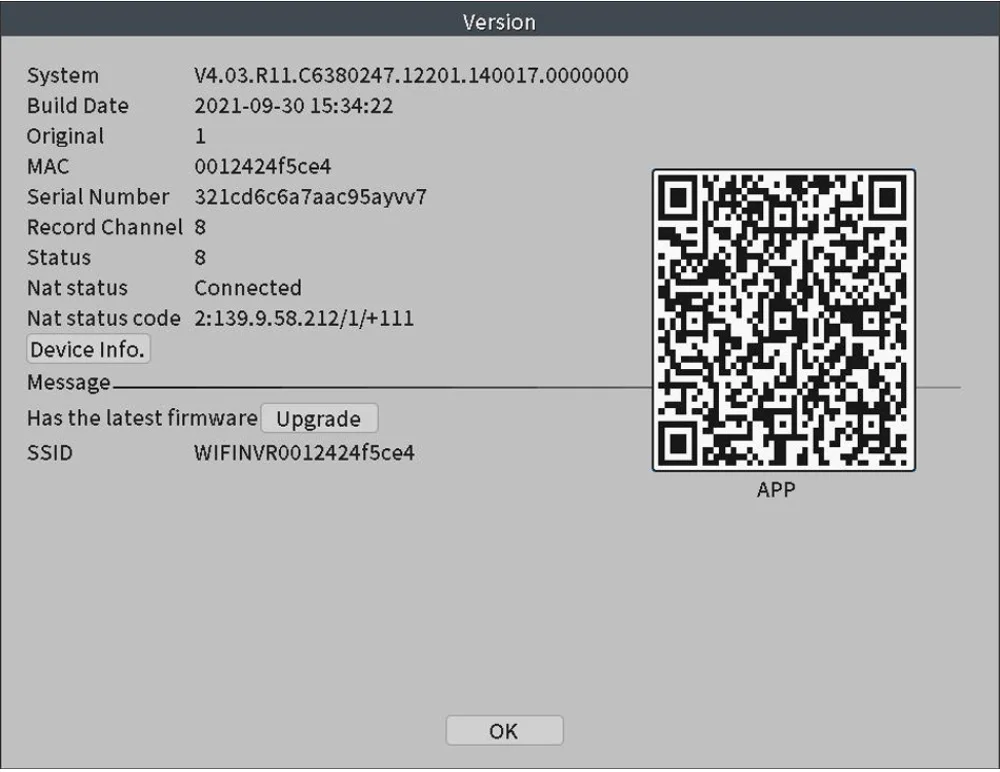

Two ways to check the network status:

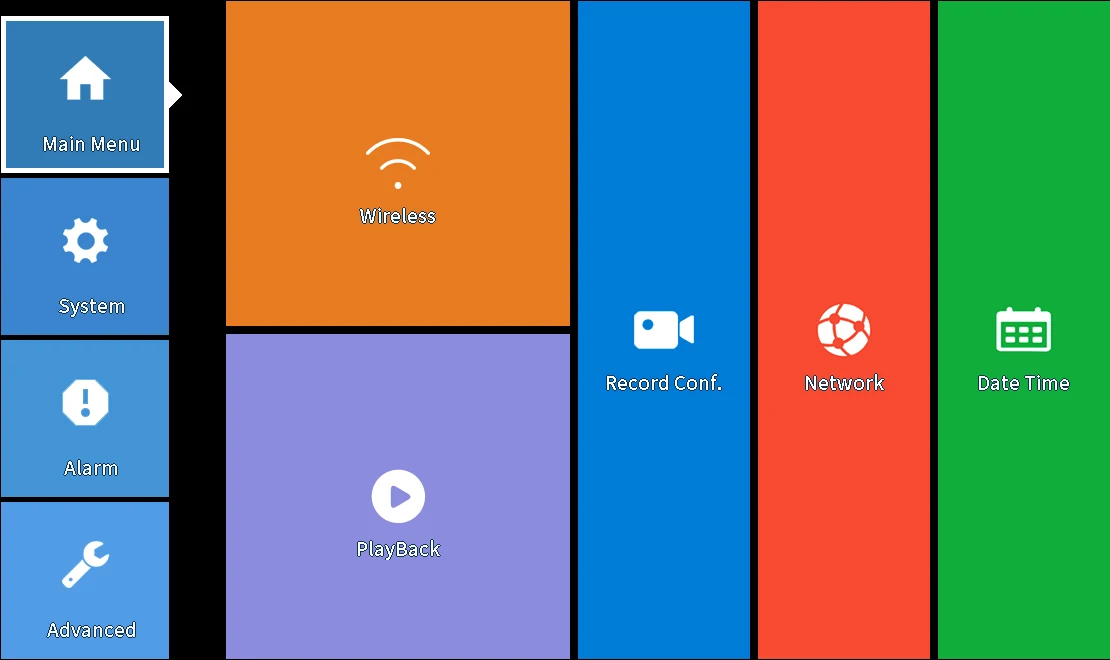

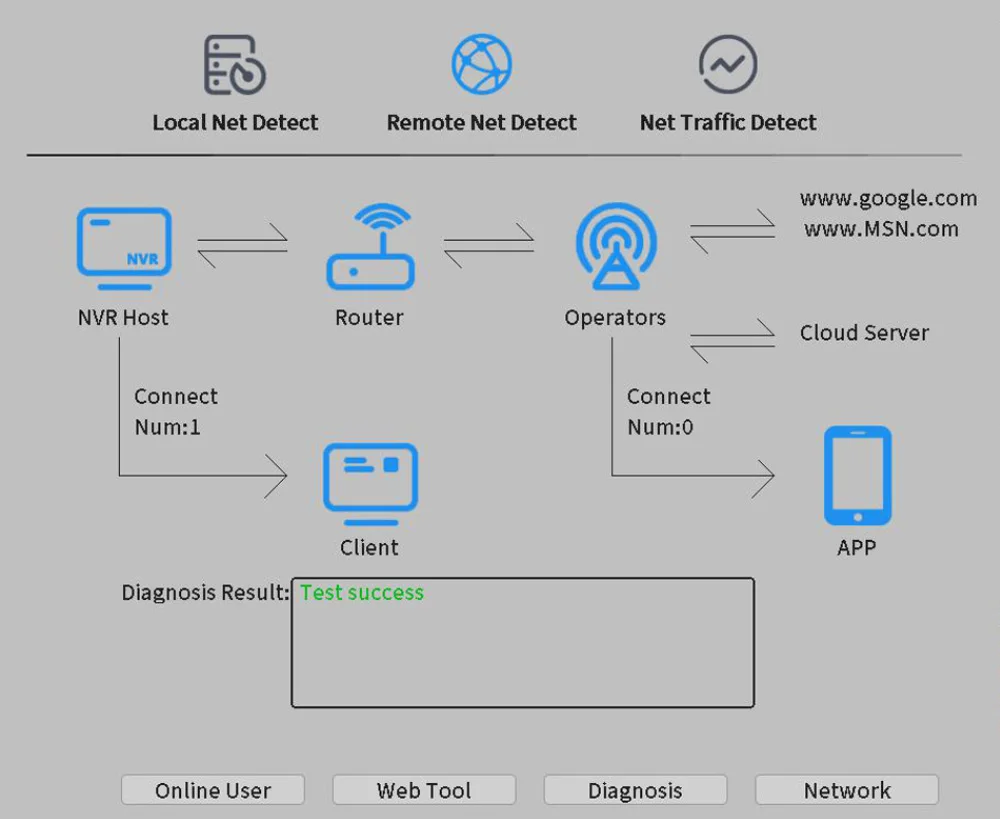

(1) Right Click the mouse- NetDetect- Remote Net Detect- Diagnosis Result, If it shows Test Success, the network is connected.

Wireless Configuration/Channel Set.

Note: The original cameras are paired with NVR at manufacturing site. This instruction is for the extra cameras and connected failed cameras.

Wireless NVR supports wired and wireless two ways to access the camera(supported by some models). The two modes are set as follows:
1. Wireless configuration: right click mouse- Wireless/Channel Set, Delete the Offline Cameras first, then click on the Wireless code to Pair/QuickPair, then the image will automatically show after pairing successully.
2. Wired configuration: Connecting NVR to camera with an Ethernet cable will automatically obtain network settings for automatic internet access, After the Ethernet cable is plugged in, NVR will give priority to wired access, and the cameras will show on the screen automatically.

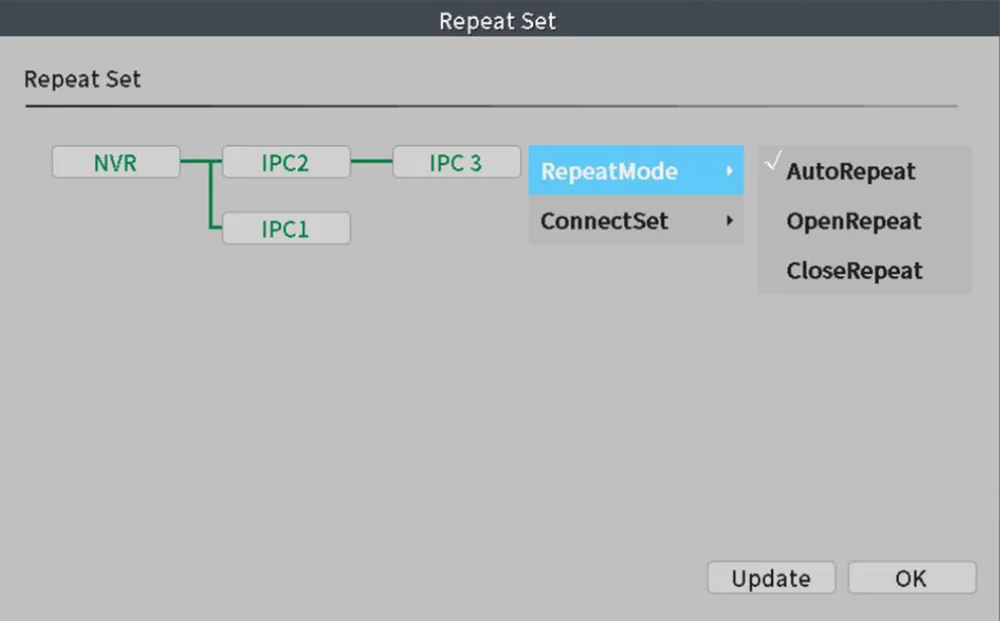

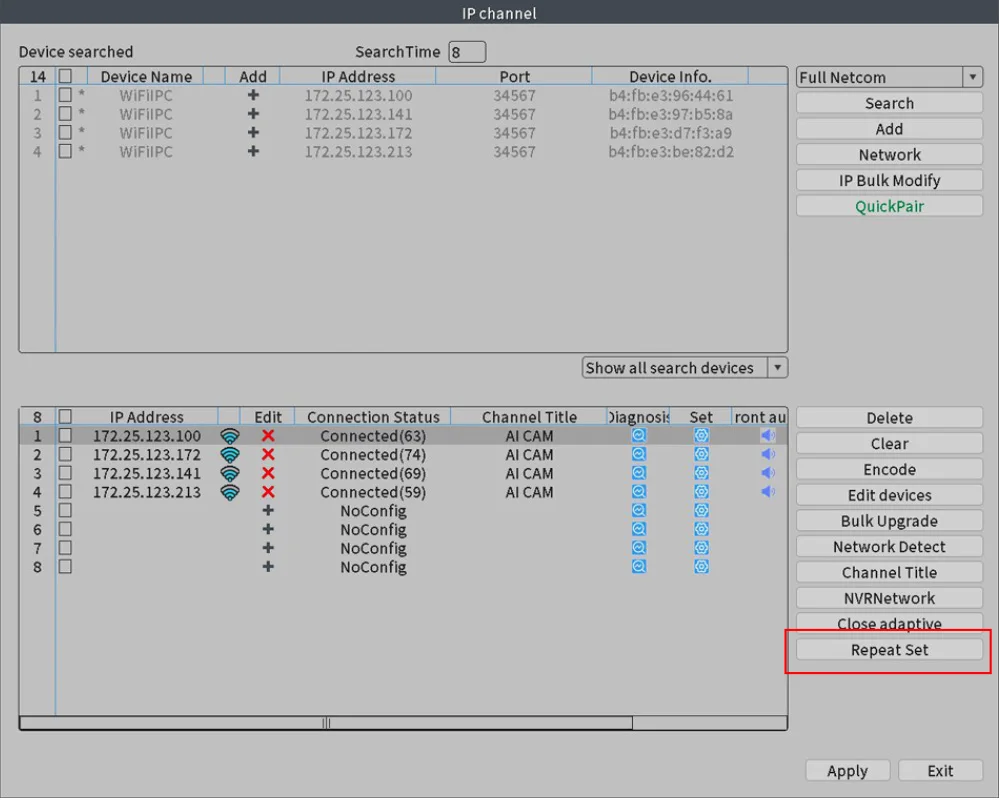

3. Repeat Setting interface descrition

Right click the mouse- Wireless/Channel set- Repeat Set.
There are three Repeat Modes: Auto Repeat, OpenRepeat, CloseRepeat. Under normal circumstances, it is recommanded to set to Auto Repeat mode, Repeat Modes can be set in the pop-up option box when clicking the corresponding IPC Cameras.

AutoRepeat:

In AutoRepeat mode, at most two levels of repeat can be realized, NVR→IPC1→IPC2.The IPC devices connected to the NVR will automatically turn on the repeat function. If the repeat fundtion is turned on, the corresponding IPC font is green (IPC1) And device connected to IPC will not enable the repeat function, If the repeat function is not turned on, the corresponding IPC font is white (IPC2,that is , the device cannot be repeated after IPC2) .

OpenRepeat :

This mode will forcibly open the repeat mode(restart is still maintained) . This mode is used for three-level or above repeat , it is not reconmended to turn on this mode because the transmission load of the WIFI module during the three-level or above repeat is big.

CloseRepeat:

This mode will forcibly close the repeat mode (restart remains),this mode is used when is a complex environment,IPC maybe repeated to an undesirable IPC, at this time you can turn off the repeated equipment to prevent wrong repeat (or use forced connection function).

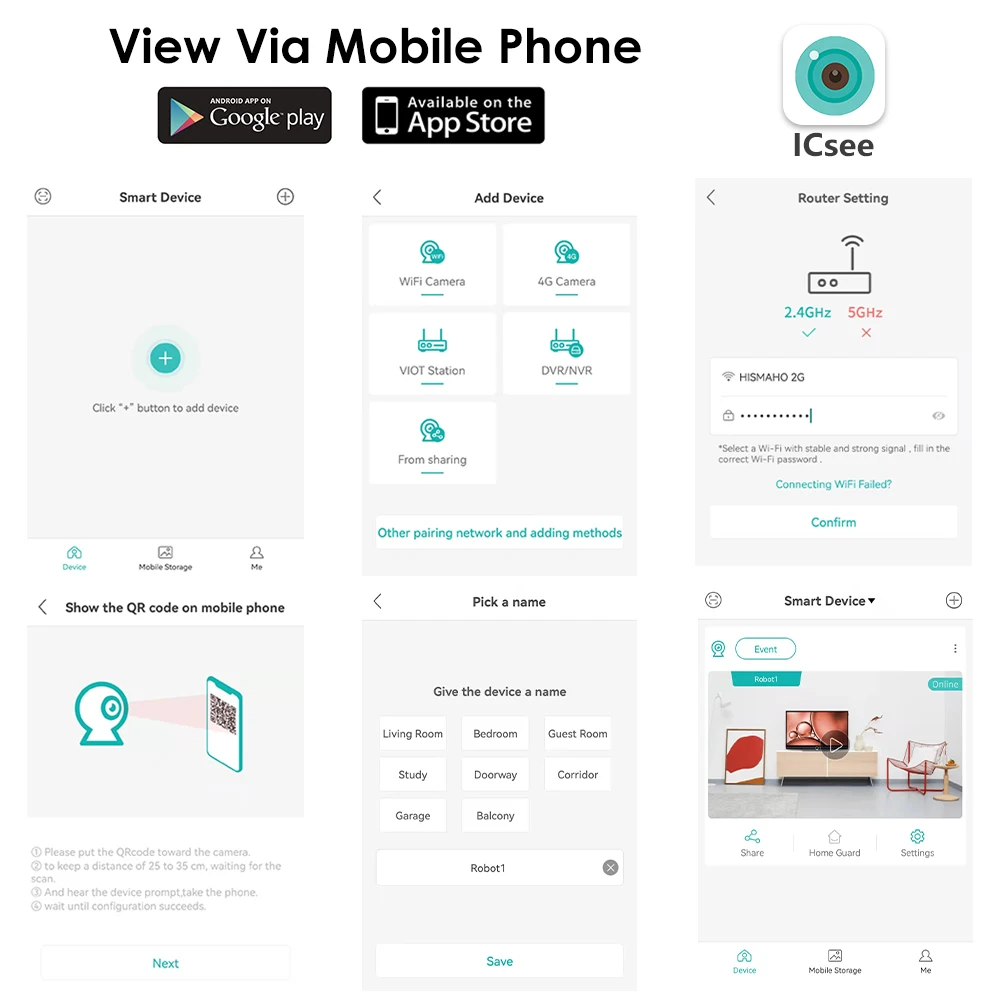

Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…
