- Video Input: 8 Channel
- Resolution: 5mp
- TV System: NTSC,PAL
- PCS of Camera: 4PCS,8pcs
- Cable Length: None
- Model Number: HC-09WIFINVRK-5MP
- Brand Name: HCVAHDN
- Origin: Mainland China
- Certification: CE
- Video Compression: H.265
- compatibility: H.265 & H.264
- WIFI NVR Resolution: 10CH 5MP WIFI NVR
- Camera Resolution: 5.0MP HD Camera
- H 265 NVR Features: Motion detection/email Alert..
- Video Port: 1ch VGA, 1CH HDMI output
- Audio port: 1CH input / 1CH Output(RCA)
- Remote View: Android, iPhone, iPad, pc, etc
- Language: Multi language(English,Spanish,Russian etc.)
- HDD Port: 1*SATA port (Supprt up to 4TB HDD)
- Hard Drive Size: 3.5"inch
- Mobile Phone viewing: "IP Pro" APP
- Application: Home,store,shop,office,park,Supermarket etc
- Warranty: 3 years
Real time Audio Record
Built-in a waterproof microphone let you hear the sound around the camera,Records what people say,make it authentic with sound video recording .
True Plug and Play,Easy Installation
Super easy installation and configurations. Real plug and play, no need of any professional skills,you can totally do it yourself effortlessly and build your own surveillance system.
Motion Detection
This system is designed to send an email alert when any motions are detected and allows you to record only when motion is detected.
Instant Email Alert
Can set up the area you want to control,When it is triggered,it will send message to your email ,You can get the first hand information ,no matter when and where you are .
HD 5.0MP High Definition Display
High-Definition interface output,Suport for online playback,Mobile remote,Multi-window display with 5.0MP Resolution.The angle will be more larger,and the image will be more clearer.

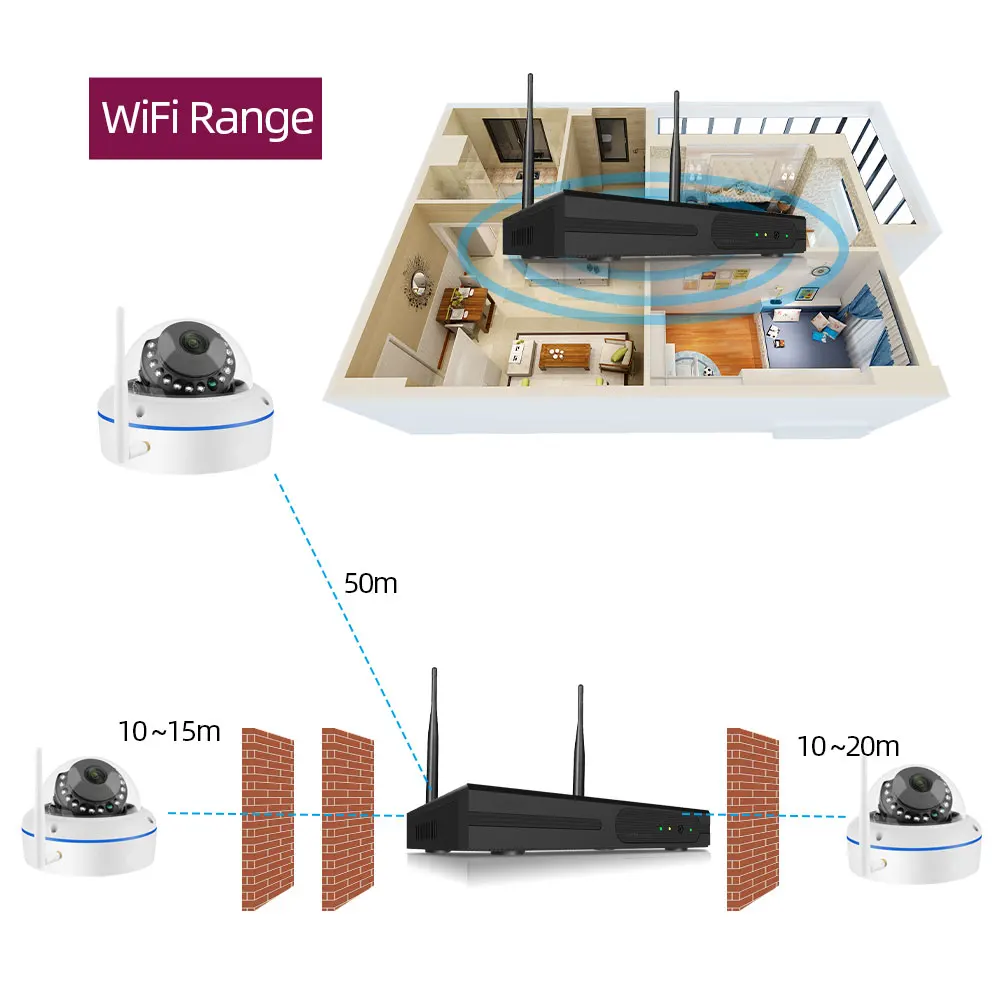

Wifi transmission distance
Wireless connections between cameras and NVR,Up to 50 Meters Wireless Transmission(no obstacle)
IP 66 Waterproof
Use them as outdoor cameras or indoor cameras, as they are built tough to withstand whatever the weather throws as then:rain,snow,dust and hot days .with IP66 weatherproof rating ,and cables threaded through the stand for extra protection ,ensure you can reply on their performance,day in ,day out.Our camera adopts heavy-duty metal housing,professional IP66 weatherproof,Providing stable performance both indoor and outdoor.
Smart IR-Cut Day night vision monitoring
The smart IR-Cut filter switches automatically between day and night to reduce color cast in day time and enhance image brightness at night making sure you can get vivid surveillance footage from dawn to dark.
Advanced H.265 Video Compression
H.265 More Clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size,save your HDD storage space and reduce your purchase cost.
Remote access anywhere,anytime
Support ios, Android,Windows PC. With the free app IP PRO. you’ll know that’s happening even when you’re not around, Receive notifications and view live or recorded footage right from your phone.
Smart playback
You can easy find the video footage you’d like to playback, Smart playback available with customizable searching area, playback time is greatly reduced by speeding through unimportant videos.
Easy remote view setting
Easy setting , just 4 steps for mobile phone viewing,View live video of the system from anywhere and anytime via you smart phone, table or PC with advanced P2P technology, you are able to remote access your system in minutes or less, no portforwarding needed, remote access has never been so easy!!!
Product specifications
10CH 5MP WIif NVR
System
Video compression:H.265(High profile)
Operating system:Embedded LINUX
Video & Record
Preview screen:1/4/8/9/10
Video input:10CH 720P/960P/1080P/5MP
HDMI output: 1CH,Resolution:1024*768,1366*768,1440*900,1920*1080P,2592*1944
VGA Output: 1CH,Resolution:1024*768,1366*768,1440*900,1920*1080P,2592*1944
Resolution:720P/960p/1080P/5MP
Video Mode: Manual, Time, Motion, Alarm
Playback Mode: Real time, Routine, Event
Playback:10CH
Interface
Video Output: 1*VGA,1*HDMI
Network Protocol: UPnP/ SMTP/ PPPoE/ DHCP, FTP etc
Net Interface: 1 * RJ-45
USB Interface: 1 * USB2.0 Port
HDD :1*SATA port (Max 4TB/per)
Other
Operating Conditions: -10 C ~ 55 C Humidity 95% or less (non-condensing)
Power Supply:DC 12V
Power Consumption:<5W
Size: 260mm*210mm*45mm
Back up method : External storage via USB
USB Mouse:included
Weight:1.5KG
NVR Support Multi-Language
Russian, English, Finnish, French, German, Greek, Italian, Japanese, Poland, Protugal, Spanish, Thai, Turkey Romanian, Slovakia, Czech, Arabic, Swedish and so on
Camera Specification:
Video
Image sensor:1/3”inch CMOS
Video quality:5MP
Lens:3.6mm lens
Dual Stream:YES
Port:RJ45/WIFI 802.11b/g/n
Day/Night Mode:Color During day/switches to B&W at night
General
Indoor / Outdoor:Suitable for Indoor or Outdoor use
Operating Temperature:-25°F~122°F / -32°C ~50°C
Operating Power:DC 12V
Power consumption:<6W
Weatherproof:IP66
Minimum Illumination: 0.0 Lux
Body Construction:Bullet with Built-in Wall Mount
Night Vision
Distance:Up to 40m
IR Cut Filter:yes
Number of IR Lens: 15PCS IR LEDs
Items included
· 1x 10CH 5MP Wireless NVR
· 4/8x Bullet Cameras
· 4/8x Power Supply for Camera
· 1x Power Supply for NVR
· 1x USB Mouse(gift)
· 1x 3ft 1M Ethernet Cable(gift)
· 1x Quick Guide
Hard Disk Optional
You can install it by yourself
1.Do not need installation engineer,
2,Save installation free.
3,Control installation time freely,
You can install it in there place
Application:Home,supermarket,hotel,garden,factory,shop office,,,etc,
