Wifi Bluetooth Tuya APP Outdoor Access Control System Kits Waterproof RFID Fingerprint Keypad Door Electric Magnetic Strike Lock

$49.66$91.82

SKU: 3256805936582248 Categories: ,
  • Direction: None
  • Security Mode: Fail Safe
  • Model Number: F20-K TUYA kit
  • Brand Name: OBO HANDS
  • Origin: Mainland China
  • Certification: NONE
  • Type: Waterproof Access Control Kit
  • Working Voltage: DC12V
  • WG interface: WG26/34 input/output
  • User Capacity: 100 fingerprints, 8000 cards
  • Unlock Mode: Tuya APP, Fingerprint, Password, RFID Card
  • Working Frequency: 125KHz and 13.56MHz
  • Lock1: 180KG Magnetic Lock
  • Lock2: Electric strike lock
  • Lock3: Electric drop bolt lock
  • Bracket: L/U/ ZL Bracket
  • RFID Keypad: F20-K tuya
  • Access control power supply: DC12V 3A
  • Type1: Door Access control system
  • Type2: RFID access control system
  • RFID Access control keypad: IP68 Waterproof

Wifi Bluetooth Tuya APP Outdoor Access Control System Kits Waterproof RFID Fingerprint Keypad Door Electric Magnetic Strike Lock

Product Description

Access Controller
  • Material: high quality ABS plastic

  • Fingerprint capacity: 100

  • Card capacity: 8000

  • Panel: touch screen panel

  • Working frequency: 125KHz and 13 56MHz dual frequency

  • Card reading type: support EM ID and MF 1K compatible card

  • Card reading distance: 0-5CM

  • ldentification method: Fingerprint, RFID Card, Password, Tuya APP.

  • Record capacity: Mobile phone APP remotely view the latest door opening information.

  • Management cards: can be set.

  • Backlight: has blue backlight

  • Waterproof function: IP68 waterproof, can be installed outdoor

  • Doorbell button: support wired doorbell

  • Language: Chinese, English.

  • Volume setting: 0~4 adjustable volume

  • Wiegand signal: WG26 / WG34 input/output. Supports machine data copy function.

  • Working voltage: DC 12V

  • Working current: ≤30mA

  • Remote control working frequency: 315MHz

  • Working temperature: -20。C ~ 70。C

  • Working Humidity: 20% ~ 90%

  • Product size: 138*70*18mm


Product Details:
* 360 degree comprehensive fingerprint recognition, fast ldentify Speed
For different angles of fingerprints, it can be quickly and accurately identified
* Can set Management cards, very easy to program. Don’t need to connect on computer.
Management cards was not included in the package, need to set them by yourself.

IP68 Waterproof. Can be installed outdoor.
Has a door bell button, can install a wired door bell.
White backlight keypad. The digits number can be seen clearly even at dark.


Support Fingerprint, RFID Card, Password, Tuya APP, remote control transmitter to unlock the door
Support 100 Fingerprints, 8000 RFID cards user capacity,
Mobile phone APP remotely view the latest 10000 lock opening information, more secure!


Support Tuya APP remote unlocking
Can unlock the door with the bluetooth if mobile phone without wifi
Support Temporary password unlock
can sharing password via WeChat, Email and SMS.
About Tuya APP
1) Supports language: Chinese, English.
2) You can add fingerprints, password, RFID cards on the APP, it’s very convenient.
3) You can open the door with Tuya APP unlocking button, or Tuya password.
4) A periodic password can be set, and the password is valid for a certain period of time.
5) You can also set a one-time password to open the door, and the password will expire after being used once within 6 hours.
6) Supports sharing password via WeChat, Email and SMS.
7) Can view unlock records. Click reminder information to view logs.


Tuya APP Setting Instruction

1) Scan QR code to download Tuya APP or Search Tuya on App store to download it.
2) Enter *123456 # 68 # on the access control machine, wait for 10 seconds, the indicator light flash and start pairing, pair with the mobile phone via WiFi.
3) Turn on Tuya APP to add new equipment.
4) Select "Auto scan", click "Searching".
5) Connect with available devices, click "Next". Choose Wi-Fi and enter password, click "Next".
6) Connecting, Added successfully, click "Done".
7) Click setting, turn on "remote unlock setting".
8) Select user, click "+" to add user, fill in name, click next step.

9) Add user fingerprints, Code, cards, remote control transmitter
10) Input the related information and click "Next step".

11) Add temporary code, click "Once’", input code name, click "Save offline code" , Done.

Notice: The code valid time for 6 hours and only can be used once.
12) Add ordinary user by clicking ordinary member “+”.


Support remote transmitter to unlock the door, wide Range up to 30 meters.
(The remote transmitter was not included in the package)

Can set Normally Open model
Frequent entry and exit can be set to normally open model

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity.

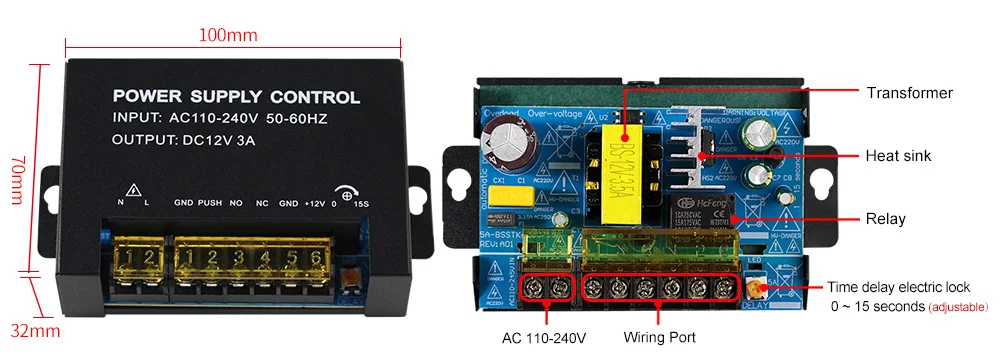

Power Supply:
  • Material: Steel

  • Input Voltage: AC110-240V

  • Input Frequency: 50-60Hz

  • Output Voltage: DC12V/3A

  • Output Power: 36w

  • Dimension: 100*70*32mm

  • Time Delay: 0-15 seconds




Door Exit Button:
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension: 86X86MM ( L / W  )

RFID Keyfobs:
Material: ABS
Operating frequency: 125KHz
Detection range: 0-5cm
Each card pre programmed and has a metal keyring.

Package List
Kit1: Including RFID access control keypad + 10pcs Keyfobs+ Power supply+ Door exit button. Not including locks.

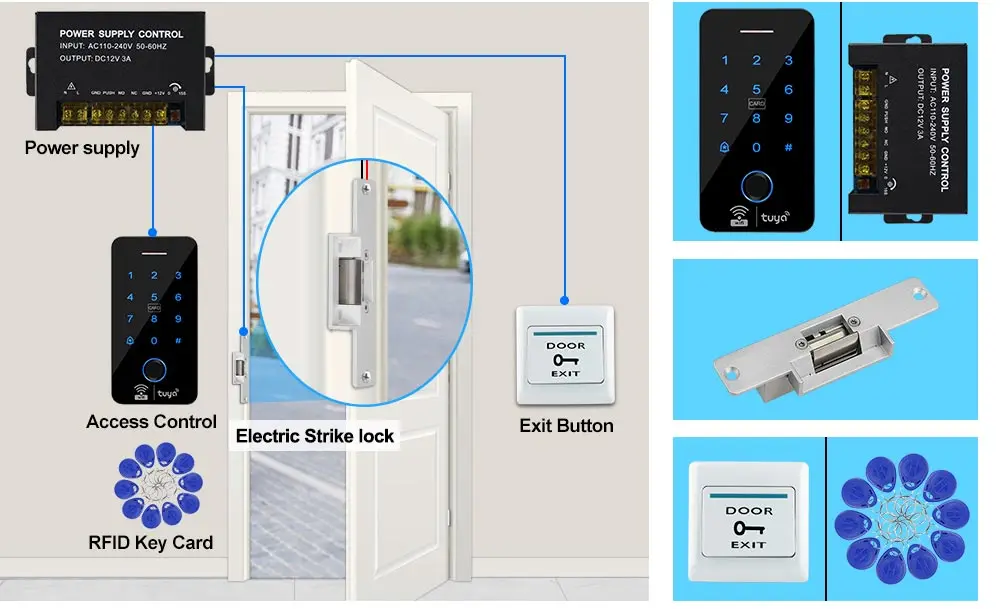

Kit2:  Suitable for wooden door, metal door. convenient and beautiful. No need bracket.
Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs
(We will send the NC type by default, if you want NO type, please leave us a message.)

About Electric strike lock
Working Voltage: 12V ± 10%
Current: 200mA – 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Feature:Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm(L / W / H)

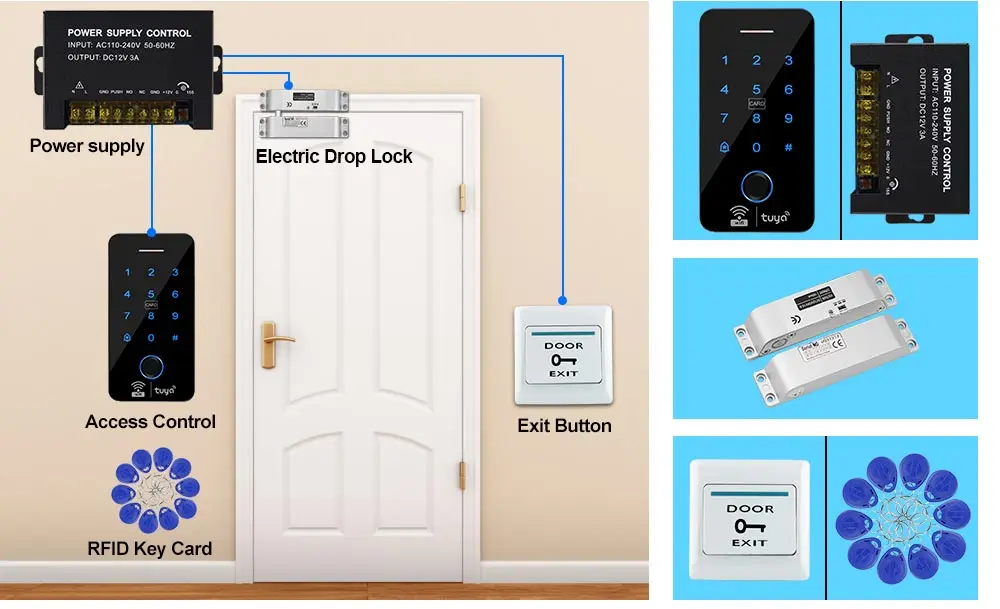

Kit3: Suitable for wooden, metal and Stainless steel door. No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs

About Electric drop bolt lock
Working voltage: 12V
Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

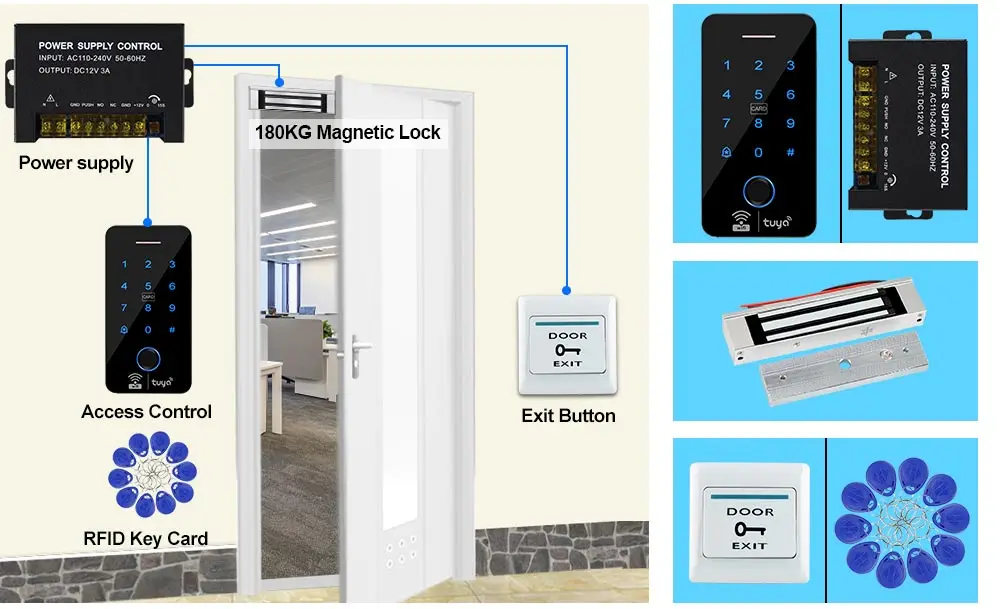

Kit4: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

About Electric magnetic lock
Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

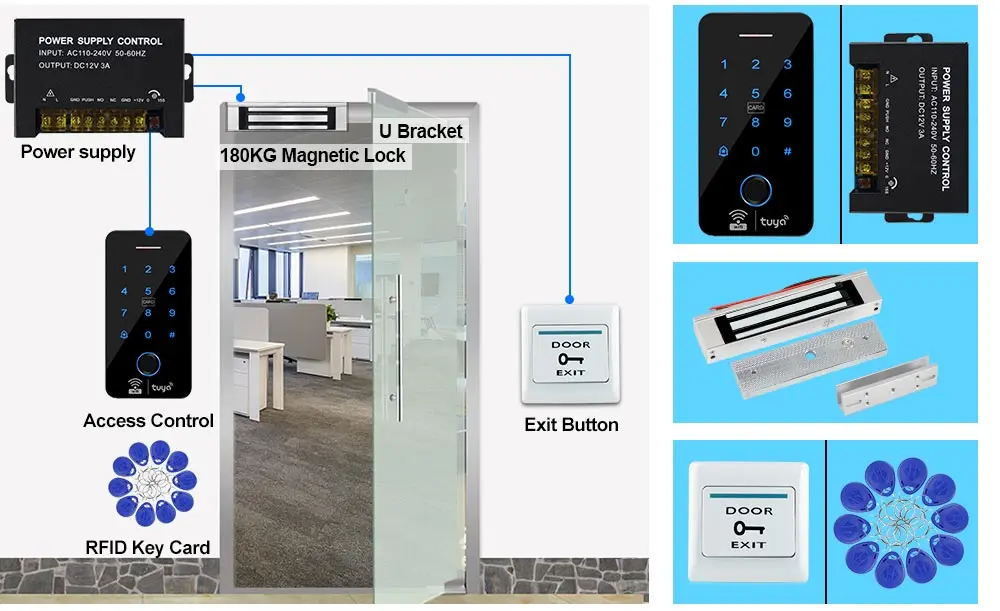

Kit5: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs

If your door is frameless glass door, then will need a U bracket
Size of  U  Bracket:  130* 33 * 26mm (L/W/H)

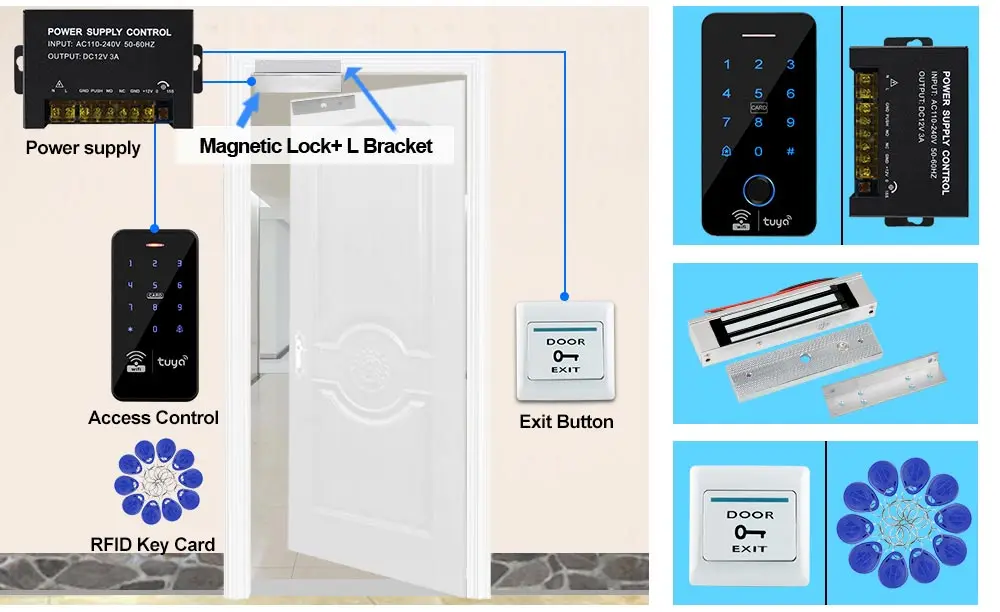

Kit6: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs

Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.
Size of L Bracket:  170* 34 * 25mm (L/W/H)

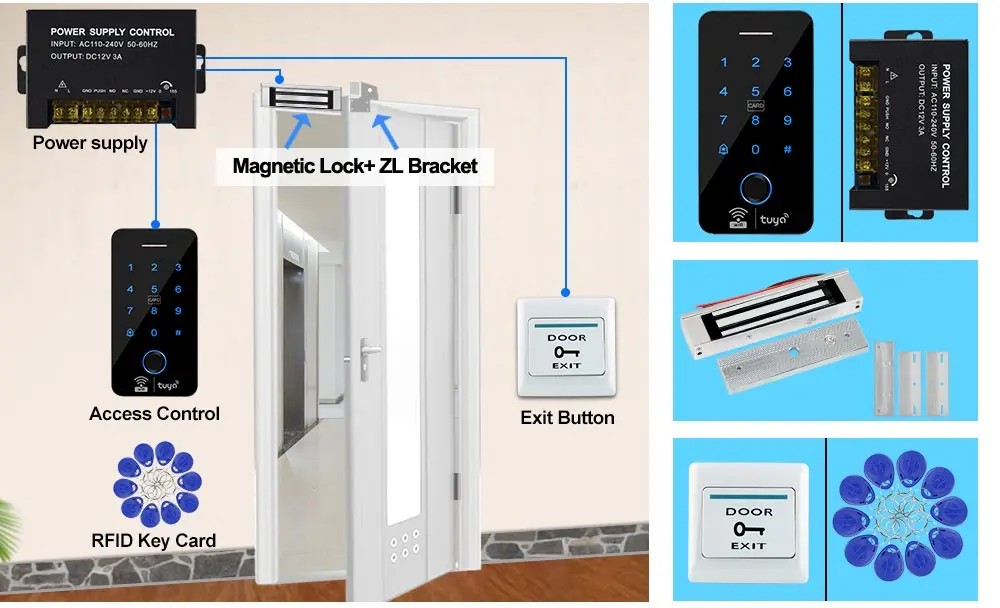

Kit7: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs

If your door is open from indoor, then need to add the ZL bracket.
Size of L Bracket: 170*34*25mm (L/W/H) ,
Size of Z Bracket: 138*45*45mm (L/W/H)

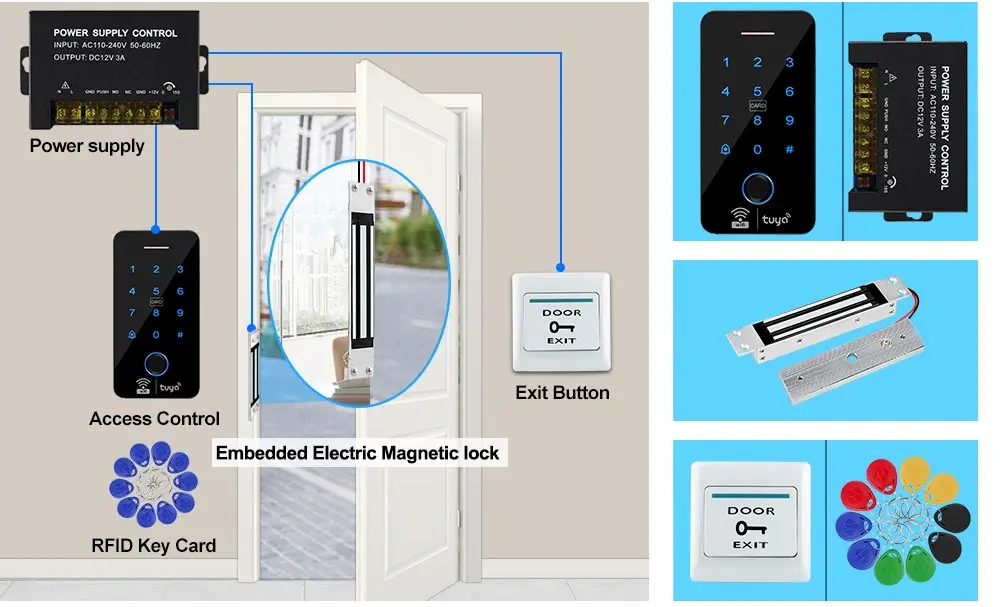

Kit8: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Size of the Lock:            192Lx33Wx20H(mm)
Size of Armature Plate:  139Lx32x11H(mm)
Holding Force:                180kg(350Lbs)
Input Voltage:                  12VDC
Current:                           12V/120mA


Wiring Diagram
